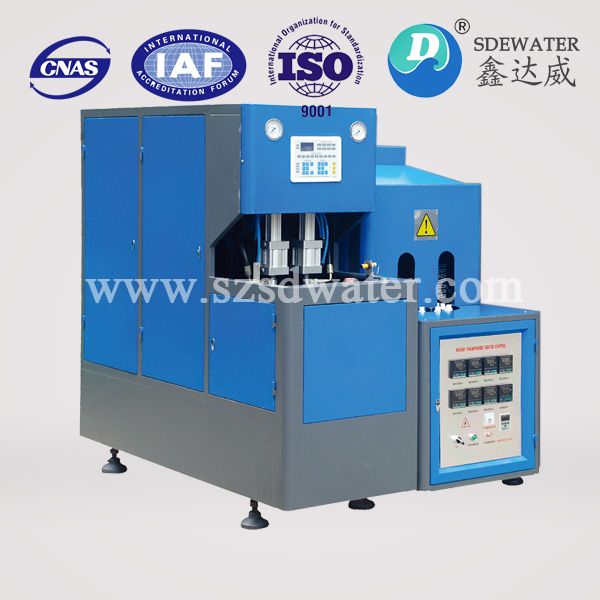

Factory Direct Automation Drinking Water Bottle Blower
Bottle Blower, Drinking Water Bottle Blower, Blow Moulding Machine
Description
Basic Info
- Model NO.: bottle blower
- Raw Material: PET
- Automation: Automatic
- Certification: CE, SGS, ISO9001:2008, QS, UL, GMP
- Air Switch: Schneider
- Contactor: Siemens
- Machine Material: Stainless Steel SUS304 SUS 316
- Lifetime: Normally Used 8 to 10 Years
- Advantage: 20 Years Experience Factory
- Transport Package: Wooden Case
- Origin: Guangdong, China
- Type: Stretch Blow Molding Machine
- Making Method of Parison: Stretch Blow
- Computerized: Computerized
- Workshop Layout: Free Design
- Circuit Breaker: Siemens
- Photoelectric Switch: Omron, Keyence, P+F
- After Sales Service: Engineer Available Installation Overseas
- Warranty: 1 Year for Free
- Trademark: Fostream
- Specification: bottle blowing machine
- HS Code: 8421219090
Product Description
Factory Direct Automation Drinking Water Bottle Blower
Product Description
1. This semi automatic pet bottle blowing machine is suitable for beverage manufacturers,for making PET plastic bottles for mineral water, pure water, no carbonated water, juice, oil, carbonated beverage etc.
2. The PET bottle blowing machine has 2, 4, 6, 8 cavity mold.
3. Moulding heads can be changed as the customers require.
4. Suitable for small scale PET bottles manufacturers
5. This PET bottle blowing machine can be a important part of a whole water filling & packing line.
6. And also we can set a whole packing line of beverage production for our customers.
7. We are trying to approach the best pet bottle blowing machine price.
Production process of bottle blowing machine
Preform heating-Introducing preform into the mould and closing unit-Inserting the stretching-Stretching and pre blowing-Final bottle blowing-Mould opening Discharge bottle from the mould.
Electronic components imports
1.PLC ------------SIEMENS(GERMANY)
2.Valve for action------------SMC(KOREA)
3.Valve for blowing-----------FESTO(GERMANY)
4.Cylinder(stretch and clamping)-------------FESTO(GERMANY)
5.Controller of preform transfer---------------Servo motor National(JAPAN)
6.Other electric parts are all world-famous brands
Technical Parameter
Competitive Advantages:
1.Perfect function with economical investment.
2.Small size and compact construction with no space waste.
3.Easy to operate and maintain, operated by one person.
4. Each machine is manufactured by professional experienced staff.
5. Production process is under strict supervision and adopts China and world top advanced production engineering.
6. The warranty time is one year. When warranty date expires, lifetime maintenance service is provided.
Our Services
Company Contact Information
Company Name:Jiangmen Pengjiang Angel Drinking Water Equipment Co., Ltd.
Operational Address:No. 2, Liantang Road, Chaolian Town, Pengjiang District, Jiangmen, Guangdong, China (Mainland)
If you need the machine video,please feel free to contact with me on TradeManager ,or send me email,or directly call me.
welcome to Jiangmen Angel.
Product Description
1. This semi automatic pet bottle blowing machine is suitable for beverage manufacturers,for making PET plastic bottles for mineral water, pure water, no carbonated water, juice, oil, carbonated beverage etc.
2. The PET bottle blowing machine has 2, 4, 6, 8 cavity mold.
3. Moulding heads can be changed as the customers require.
4. Suitable for small scale PET bottles manufacturers
5. This PET bottle blowing machine can be a important part of a whole water filling & packing line.
6. And also we can set a whole packing line of beverage production for our customers.
7. We are trying to approach the best pet bottle blowing machine price.
Production process of bottle blowing machine
Preform heating-Introducing preform into the mould and closing unit-Inserting the stretching-Stretching and pre blowing-Final bottle blowing-Mould opening Discharge bottle from the mould.
Electronic components imports
1.PLC ------------SIEMENS(GERMANY)
2.Valve for action------------SMC(KOREA)
3.Valve for blowing-----------FESTO(GERMANY)
4.Cylinder(stretch and clamping)-------------FESTO(GERMANY)
5.Controller of preform transfer---------------Servo motor National(JAPAN)
6.Other electric parts are all world-famous brands
Technical Parameter
| TYPE | Item | Unit | FS-1200B | FS-1800 | FS-120/5Gallon |
| CLAMING SYSTEM | Clamping farce | Kn | 120 | 180 | 220 |
| Clamping stroke | mm | 165 | 220 | 350 | |
| stretching stroke | mm | 370 | 450 | 580 | |
| Number of cavities | ltr | 2 | 4 | 1 | |
| CONTAINER | Max.container volume | L | 2 | 1.5 | 20 |
| Max.neck diameter | mm | 130 | 38 | 200 | |
| Max. container diameter | mm | 130 | 100 | 330 | |
| Max. container height | mm | 350 | 350 | 500 | |
| OUTPUT | Theoretical output | BPH | 1800 | 2000 | 90(5gallon) |
| ELECTRCAL SYSTEM | Heating power | kw | 22 | 20 | 23 |
| Max. heating power | kw | 32 | 28 | 40 | |
| AIR SYSTEM | Operating pressure | Kg/cm² | 8 | 8 | 8 |
| Low pressure air consuming | Ltr/min | 700 | 600 | 800 | |
| Blowing pressure | Kg/cm² | 15-30 | 15-30 | 15-30 | |
| High pressure air consuming | Ltr/min | 1500 | 1600 | 1600 | |
| CHILED WATER | Operating pressure | Kg/cm² | 5-6 | 5-6 | 5-6 |
| Temperature | ºC | 10-12 | 10-12 | 10-12 | |
| Consuming | Kcal/hr | 2400 | 2500 | 2000 | |
| Flow rate | Ltr/min | 20 | 25 | 25 | |
| COOLING WATER | Operating pressure | Kg/cm² | 5-6 | 5-6 | 5-6 |
| Temperature | ºC | 10-12 | 10-12 | 10-12 | |
| Consuming | Kcal/hr | 8000 | 10000 | 10000 | |
| Flow rate | Ltr/min | 100 | 100 | 100 | |
| MACHINE | Machine size(LxWxH) | mm | 1550*610*1600 | 1750*670*1800 | 2100*7300* 1800 |
| Heater oven size(LxWxH) | mm | 1360*610*1280 | 1750*610*1360 | 1800*1100* 2500 |
|
| Machine weight | kg | 700 | 1000 | 1500 | |
| Heater oven weight | kg | 350 | 500 | 500 |
Competitive Advantages:
1.Perfect function with economical investment.
2.Small size and compact construction with no space waste.
3.Easy to operate and maintain, operated by one person.
4. Each machine is manufactured by professional experienced staff.
5. Production process is under strict supervision and adopts China and world top advanced production engineering.
6. The warranty time is one year. When warranty date expires, lifetime maintenance service is provided.
Our Services
| 1. Pre-sale service : |
| Your inquires will be replied within 8 hours. |
| The detail of your concerned item will be presented, including the working video of machine. |
| Welcome to visit our plant in Jiangmen City. We will collect your interested item ahead of schedule. |
| You can visit our local customer if we get our customers' approval. |
| 2. Medium-sale service : |
| All products will be tested before the delivery. |
| Latest goods transport information will be provided until you receive our products. |
| 3. After-sale service : |
| Technical advisory for any time.If the products have quality problem , feel free to contact us,we will try our best to solve problems as soon as possible. |
| After the machine arrives at the customer's site, the customer can require us to send our technical for installation and training in his own factory. And this service costs 80 USD per day besides the air tickets, accommodation of the technical. |
| We can also provide our Sales as translator to your site help the installation and training. The customers only have to provide the local transportation, accommodation, air tickets (round trip) for the Sales. |
